Description

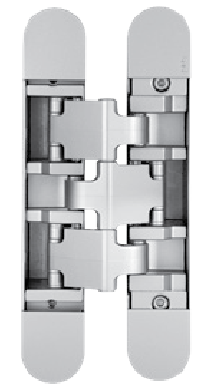

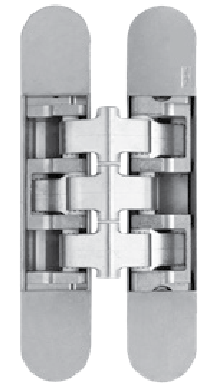

W-Tec 3Ds
Application: W-Tec 3Ds –Concealed hinge for doors with narrow profiles and solid timber frames
For timber doors
Load capacity with 2 hinges 60 kg
Adjustable +/-3mm in height and horizontal and +/-1mm gasket pressure

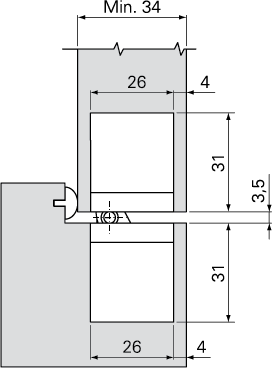

Technical information

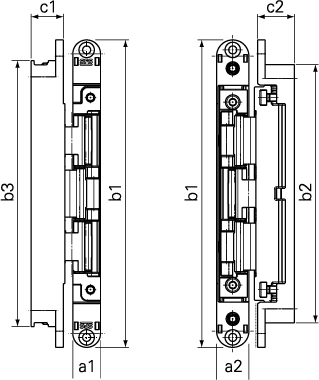

| a1 | a2 | b1 | b2 | b3 | c1 | c2 |
|---|---|---|---|---|---|---|
| 18.0 | 21.0 | 200.0 | 168.0 | 173.0 | 22.0 | 25.0 |
Range
| Product | Packaging | Material | Surface | Corrosion resistance | Art. No |
|---|---|---|---|---|---|
| WTEC3DSS000VCO | 2 | Steel / Zamak | Matt Chrome | 4 | 1493626 |
| Zinc GSS | 5 | ||||
| WTEC3DSS000SZS | 1500689 |
Jigs/Accessories : Jigs

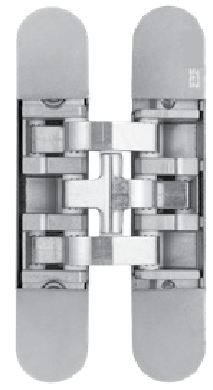

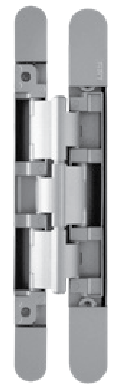

W-Tec 3D+ 60
Application: W-Tec 3D+ 60 –Concealed hinge for doors with solid timber frames
For timber doors
Load capacity with 2 hinges 50 kg
Adjustable +/-3mm in height and horizontal and +/-1mm gasket pressure

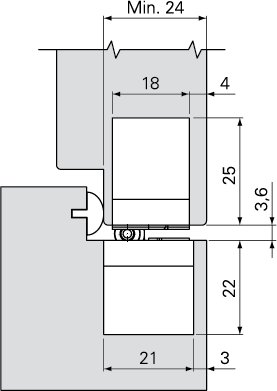

Technical information

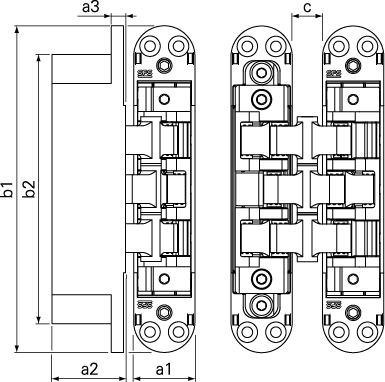

| a1 | a2 | a3 | b1 | b2 | c |
|---|---|---|---|---|---|
| 26.0 | 31.0 | 6.0 | 134.0 | 111.0 | 15.0 |
Range
| Product | Packaging | Material | Surface | Corrosion resistance | Art. No |
|---|---|---|---|---|---|
| WTEC3D60S000VCO | 3 | Steel / Zamak | Matt Chrome | 4 | 1428632 |
| Brushed Matt Chrome | 0 | ||||
| WTEC3D60S000SZS | Zinc GSS | 5 | 1368013 |
Jigs/Accessories : Jigs
W-Tec 3D+ 100
Application: W-Tec 3D+ 100–Concealed hinge for doors with solid timber frames
For timber doors
Load capacity with 2 hinges 80 kg
Adjustable +/-3mm in height and horizontal and +/-1mm gasket pressure
Technical information

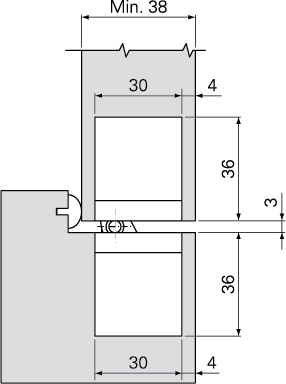

| a1 | a2 | a3 | b1 | b2 | c |
|---|---|---|---|---|---|
| 30.0 | 36.0 | 7.0 | 160.0 | 132.0 | 15.0 |
Range
| Product | Packaging | Material | Surface | Corrosion resistance | Art. No |
|---|---|---|---|---|---|
| WTEC3D100S005VCO | 2 | Zamak | Matt Chrome | 4 | 1428633 |
| WTEC3D100S005ZSX | Brushed Matt Chrome | 0 | 1363919 | ||
| WTEC3D100S005SZS | Zinc GSS | 5 | 1367891 |
Jigs/Accessories : Jigs
W-Tec 3D+ 160
Application: W-Tec 3D+ 100–Concealed hinge for doors with solid timber frames
For timber doors
Load capacity with 2 hinges 80 kg
Adjustable +/-3mm in height and horizontal and +/-1mm gasket pressure
Technical information

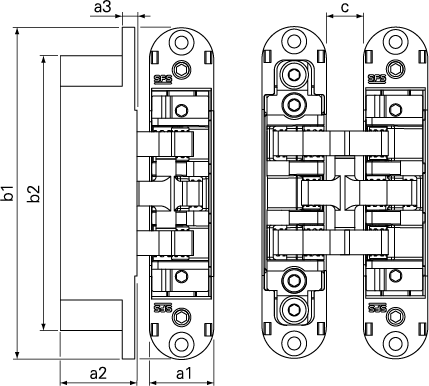

| a1 | a2 | a3 | b1 | b2 | c |
|---|---|---|---|---|---|
| 30.0 | 36.0 | 7.0 | 160.0 | 132.0 | 15.0 |
Range
| Product | Packaging | Material | Surface | Corrosion resistance | Art. No |
|---|---|---|---|---|---|
| WTEC3D100S005VCO | 2 | Zamak | Matt Chrome | 4 | 1428633 |
| WTEC3D100S005ZSX | Brushed Matt Chrome | 0 | 1363919 | ||
| WTEC3D100S005SZS | Zinc GSS | 5 | 1367891 |
Jigs/Accessories : Jigs
W-Tec 3DL
Application: W-Tec 3DL –Concealed hinge for doors with solid timber frames
For timber doors
Load capacity with 2 hinges 200 kg
Adjustable +/-3mm in height and horizontal and +/-1mm gasket pressure
Technical information

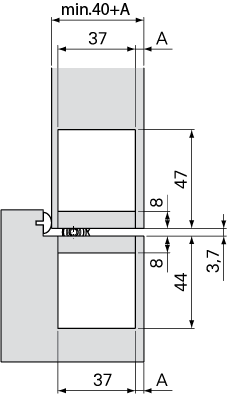

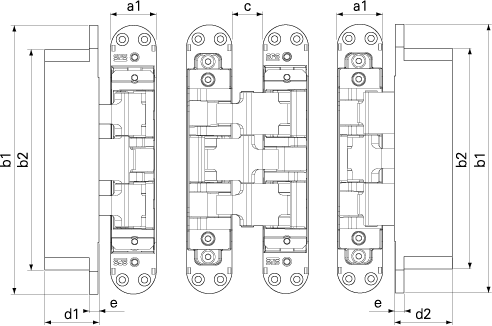

| a1 | b1 | b2 | c | d1 | d2 | e | A | 5min |
|---|---|---|---|---|---|---|---|---|
| 37.0 | 218.0 | 179.0 | 25.0 | 44.0 | 47.0 | 8.0 | 4+8 | 40+A |
Range
| Product | Packaging | Material | Surface | Corrosion resistance | Art. No |
|---|---|---|---|---|---|
| WTEC3DLS000SZS | 2 | Steel / Zamak | Zinc GSS | 5 | 1558802 |
| Matt Chrome | 4 | 1558801 |
