Description
CAB

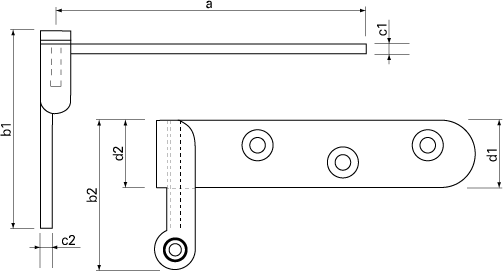

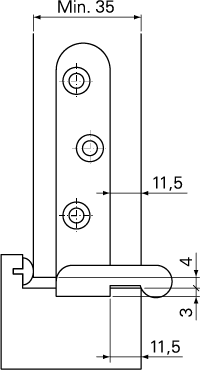

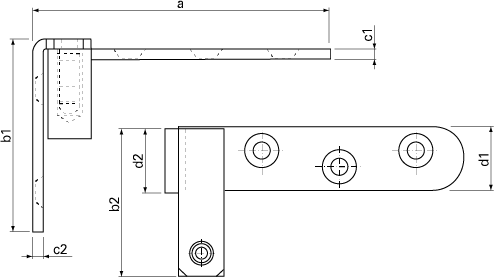

Application: CAB-002-Cylindrical pivot hinge
For timber doors
Load capacity per pair 40 kg
Technical information
| a | b1 | b2 | c1 | c2 | d1 | d2 |
|---|---|---|---|---|---|---|
| 90.0 | 60.0 | 43.0 | 3.0 | 3.0 | 20.0 | 20.0 |
Range
| Product | Packaging | Material | Surface | Corrosion resistance | Art. No |
|---|---|---|---|---|---|
|
CABE002NO |
10 | Steel |
Matt Nickel |
2 |
954008 |
|
CABE002MT |
Bright Brassed |
1 |
1272496 |
Jigs/Accessories : Center part
CAB

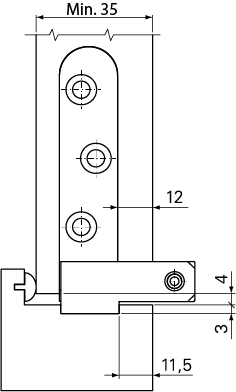

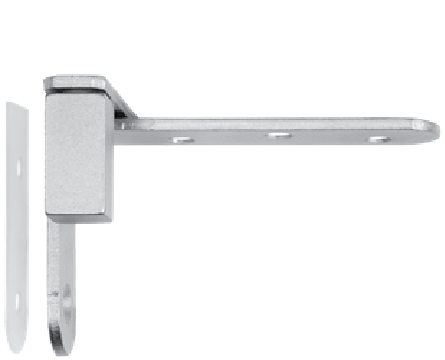

Application: CAB-022-Square pivot hinge
For timber doors
Load capacity per pair 55 kg
Technical information
| a | b1 | b2 | c1 | c2 | d1 | d2 |
|---|---|---|---|---|---|---|
| 99.3 | 60.0 | 46.5 | 3.0 | 3.0 | 20.0 | 20.0 |
Range
| Product | Packaging | Material | Surface | Corrosion resistance | Art. No |
|---|---|---|---|---|---|
| CABS022SCO | 10 | Steel | Sandblasted Matt Chrome | 1 | 1272701 |
| CABS022GAM | 10 | Powder coated Silver Grey | 5 | 1164666 |
Jigs/Accessories : Center part
CAB-R

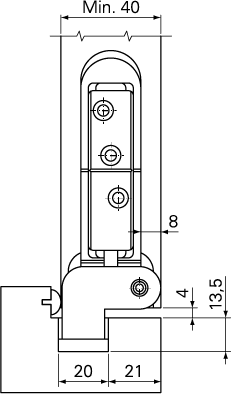

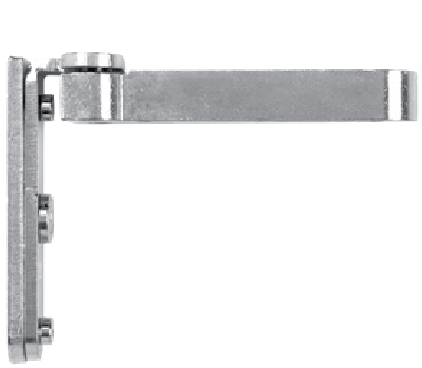

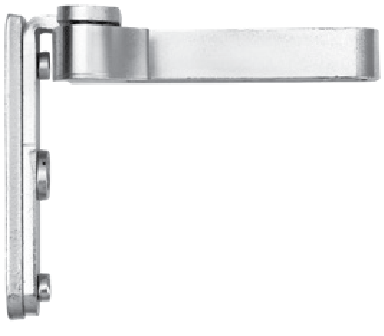

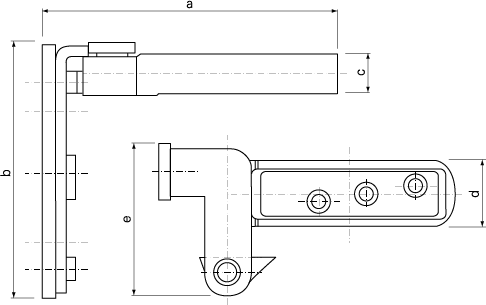

Application: CAB-R-000-Adjustable pivot hinge
For timber doors
Load capacity per pair 80 kg
Adjustable +/-3mm in horizontal and +/-1,5mm gasket pressure
Technical information
| a | b | c | d | e |
|---|---|---|---|---|
| 110.0 | 90.0 | 14.0 | 24.0 | 55.0 |
Range
| Product | Packaging | Material | Surface | Corrosion resistance | Art. No |
|---|---|---|---|---|---|
CABRF000ZCO CABRF000ZSD | 6 | Steel / Zamak | Matt Chrome | 3 | 1272070 |
| Gold | 0 | 516543 |
Jigs/Accessories : Center part, Cover Caps
CAB-R 3D

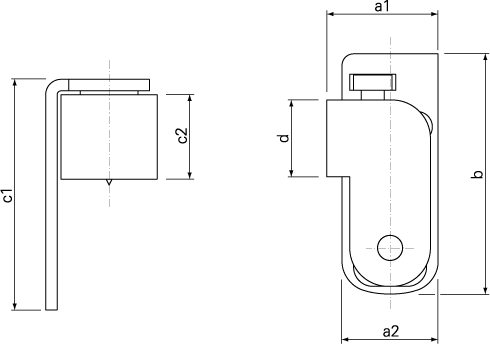

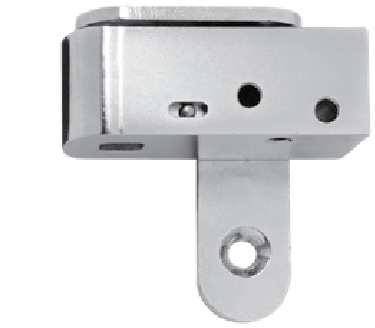

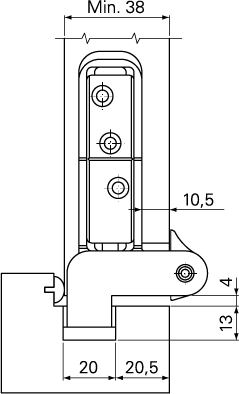

Application: CAB-R 3D-001-Adjustable pivot hinge without milling
For timber doors
Load capacity per pair 80 kg
Adjustable 0/+3mm in height, +/-1,5mm horizontal and +/-2mm gasket pressure

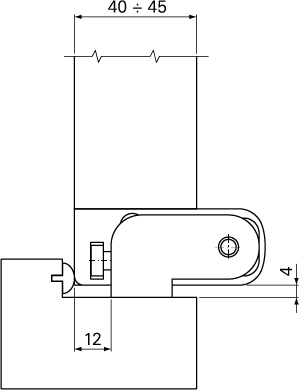

For panels between 40 – 45 mm
Technical information
| a1 | a2 | b | c1 | c2 | d |
|---|---|---|---|---|---|
| 29.0 | 25.0 | 62.5 | 60.0 | 22.0 | 22.0 |
Range
| Product | Packaging | Material | Surface | Corrosion resistance | Art. No |
|---|---|---|---|---|---|
| CABR3DF001ZCO | 6 | Steel / Zamak | Matt Chrome | 3 | 1272698 |
Jigs/Accessories : Center part
CIR-03

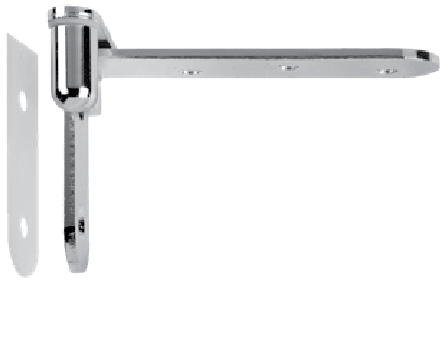

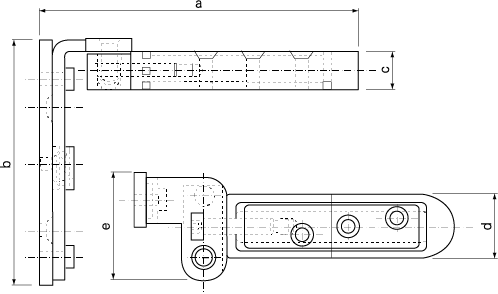

Application: CIR-003-Invisible and adjustable pivot hinge (opening 110°)
For timber doors
Load capacity per pair 80 kg
Adjustable +/-3mm horizontal and +/-1,5mm gasket pressure
Technical information
| a | b | c | d | e |
|---|---|---|---|---|
| 117.5 | 90.0 | 14.0 | 24.0 | 41.0 |
Range
| Product | Packaging | Material | Surface | Corrosion resistance | Art. No |
|---|---|---|---|---|---|
| CIRF003SZ | 6 | Steel / Zamak | Zinc | 3 | 1272272 |
